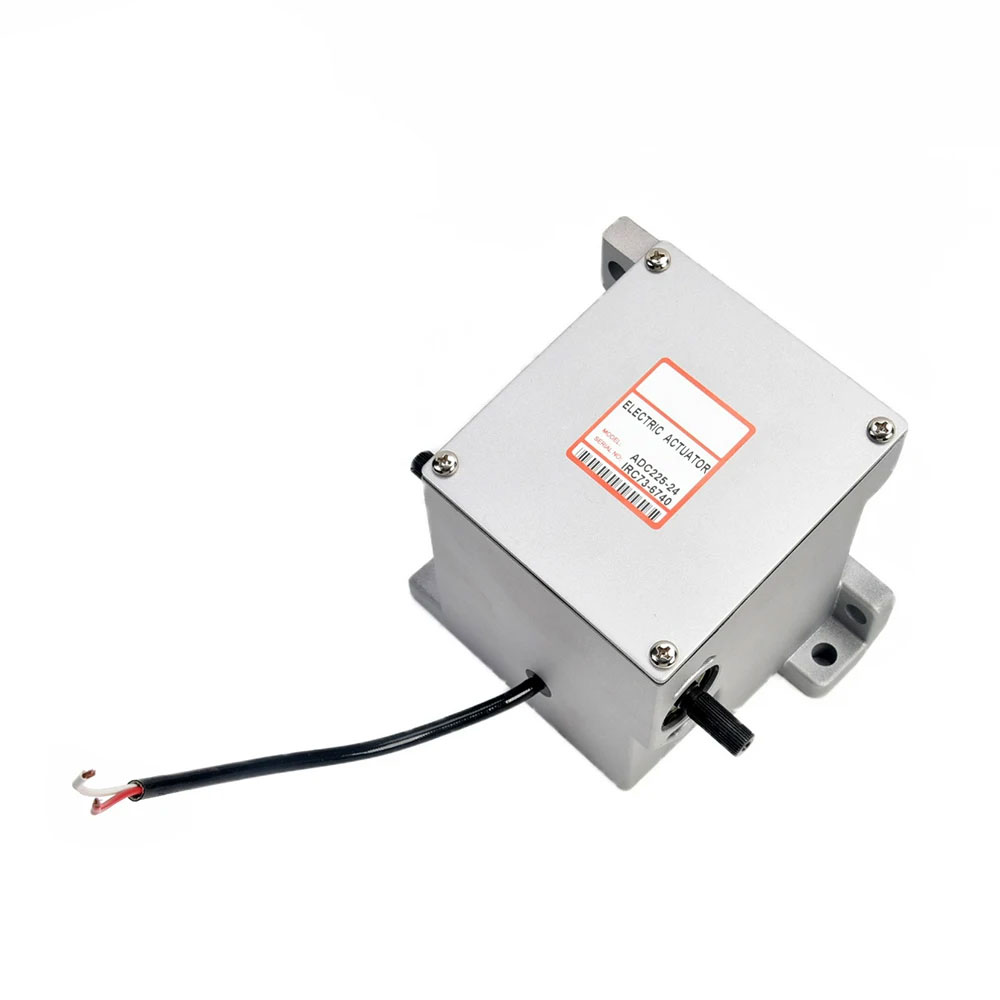

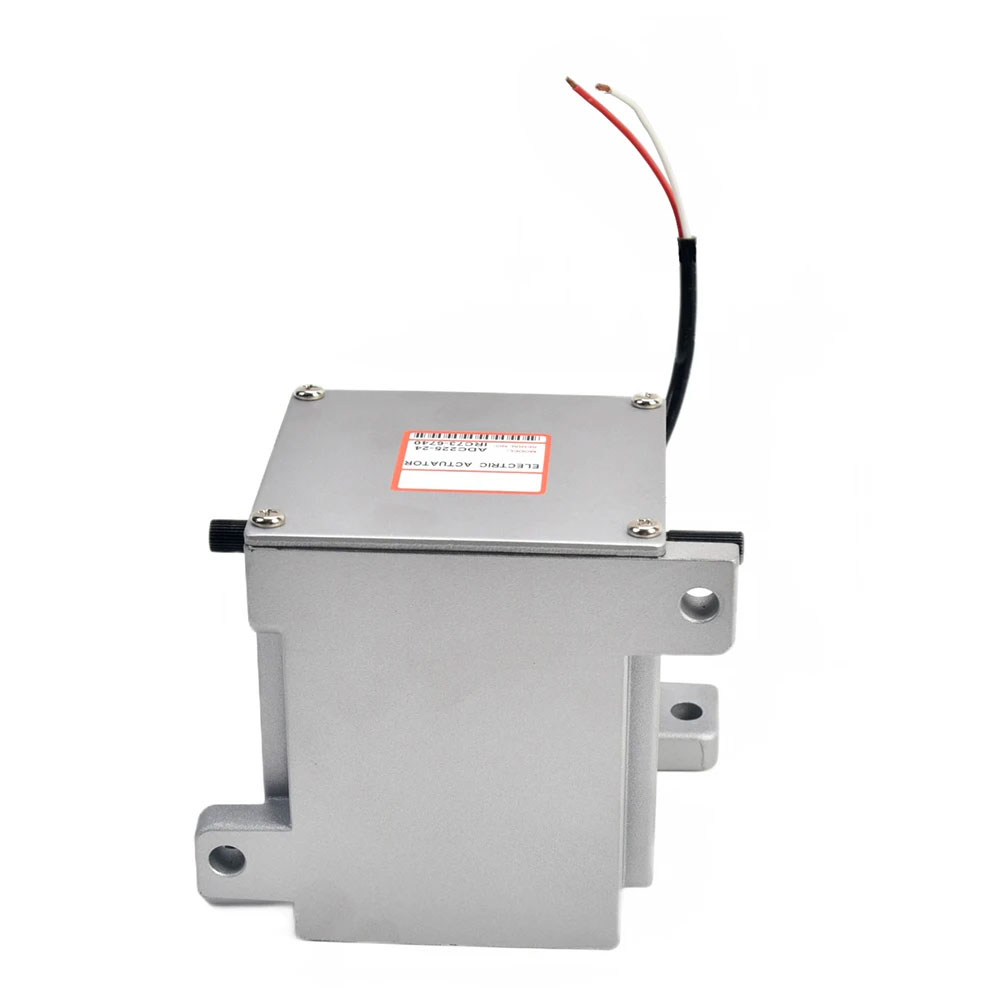

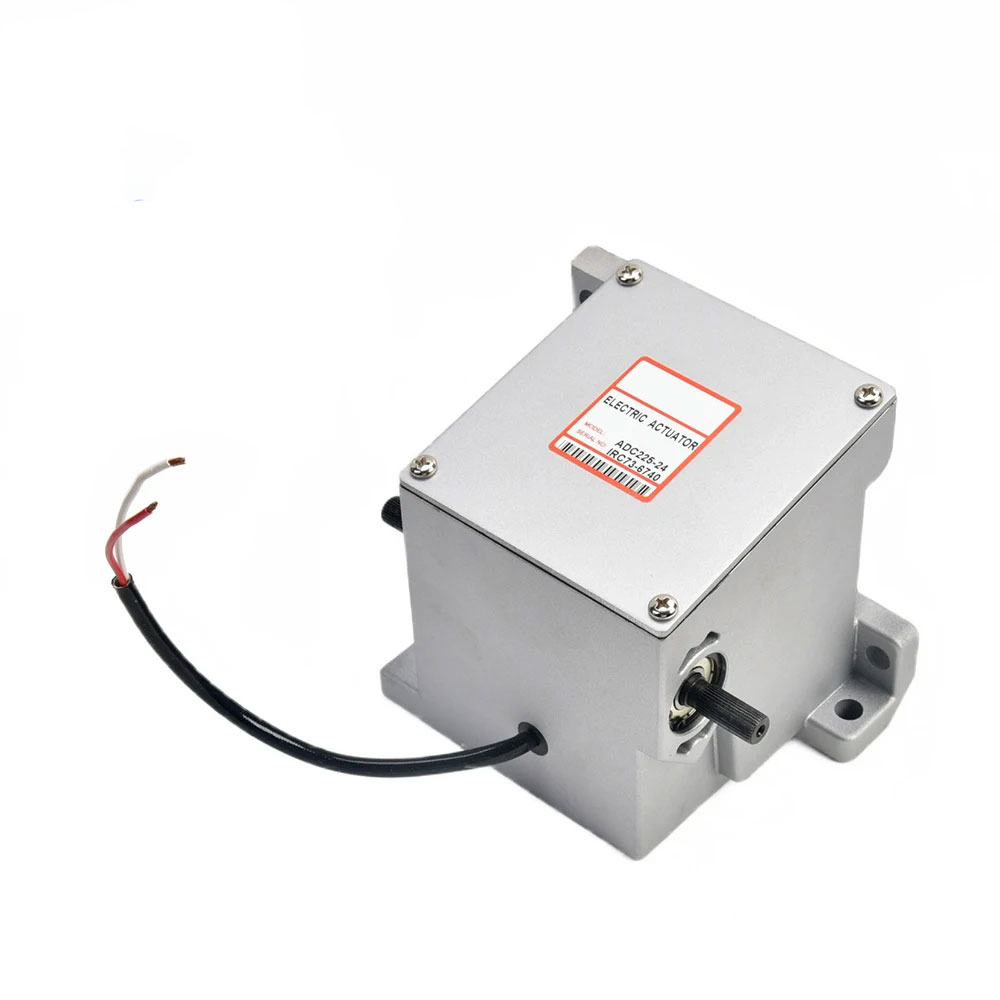

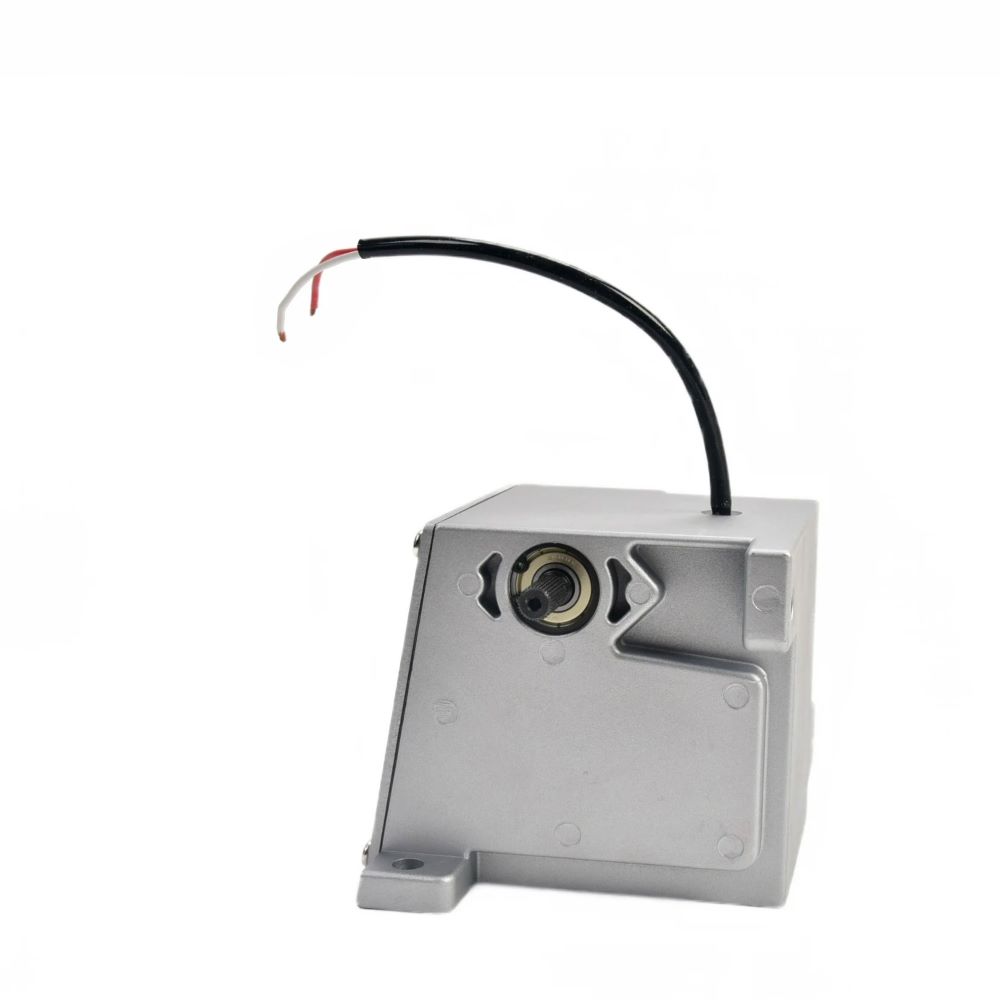

ADC225 electronic controller generator fuel pump actuator 12V engine speed controller
ADC225 electronic controller generator fuel pump actuator 24V engine speed controller
Performance:
Available torque: Maximum 1.0 pound feet (1.4 Nm)
Maximum working axis angular travel: 25+10 continuous waves/vertical variation
Power input:
Working voltage: 12/24V DC
Normal working current: 12A at 2V DC, 2 at 1V DC
environment
Temperature range: -54 to 95 ° C
Relative humidity: up to 100%
All surface treatments: antifungal and corrosion-resistant
Installation: Any position, preferred top electrical connector
Vibration: up to 20G @ 50-500 Hz
Testing: 100% testing
Connector: Comes with actuator
Levers: LE1500-2
Rod end bearing (connecting 12 # 20 HD connecting rod to lever): BR200 (right hand), BR201 (right hand)
Wire harness HD225: Comes with actuator
Packaging size: 250 * 250 * 250mm
Packaging weight: 3500g
Material: Metal
Color: Silver
Packaging content: One ADC225175 and one user manual
