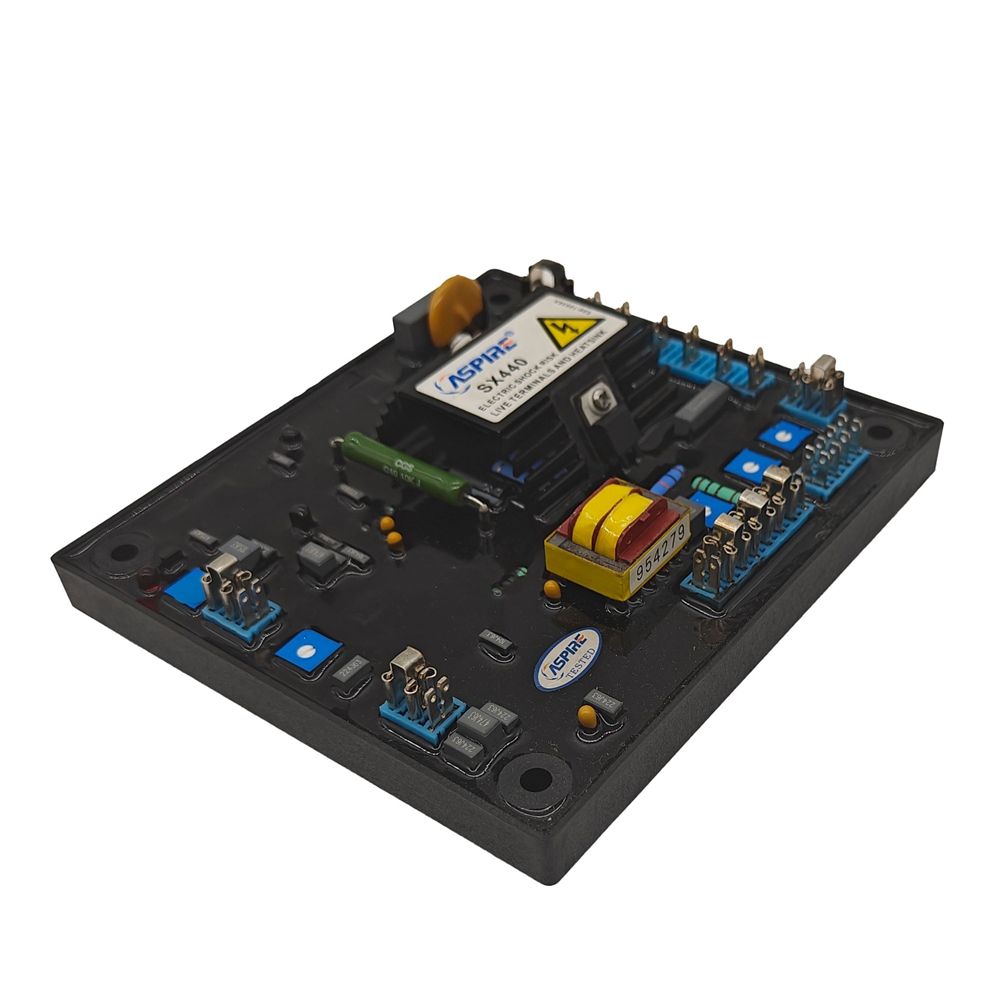

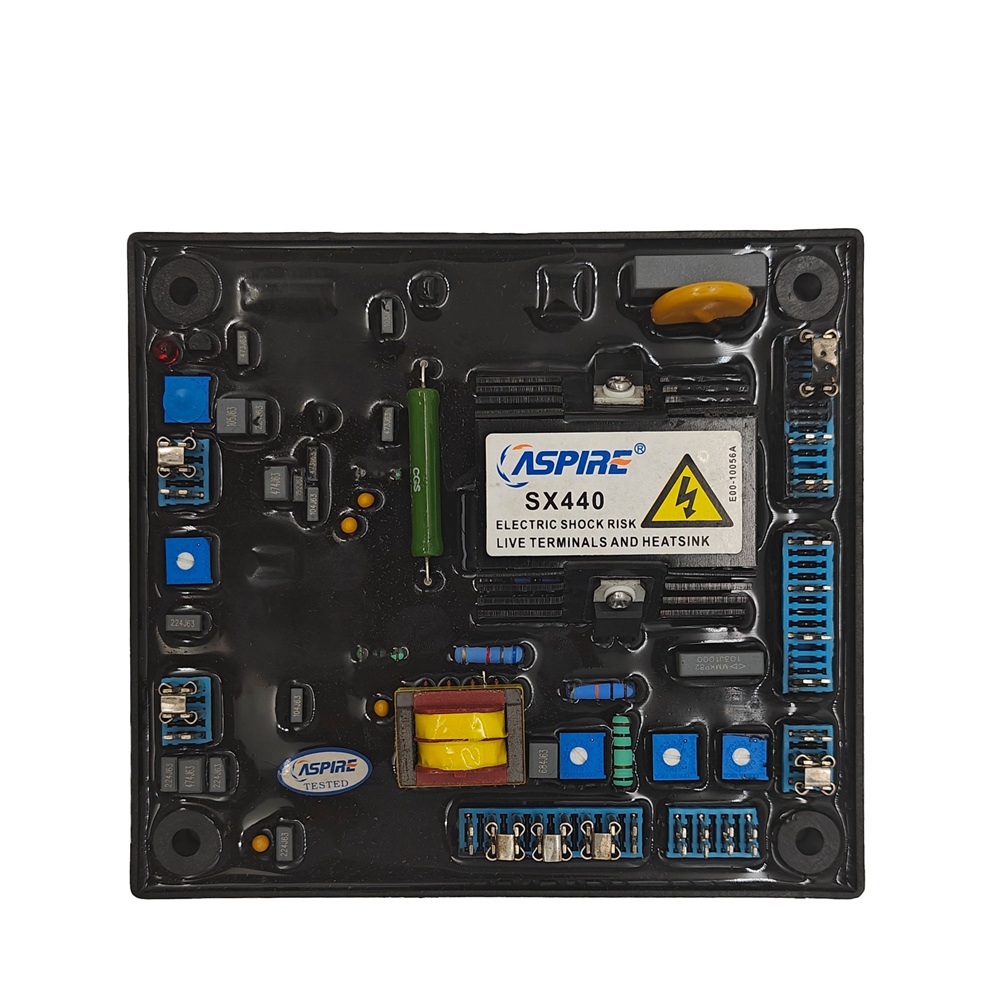

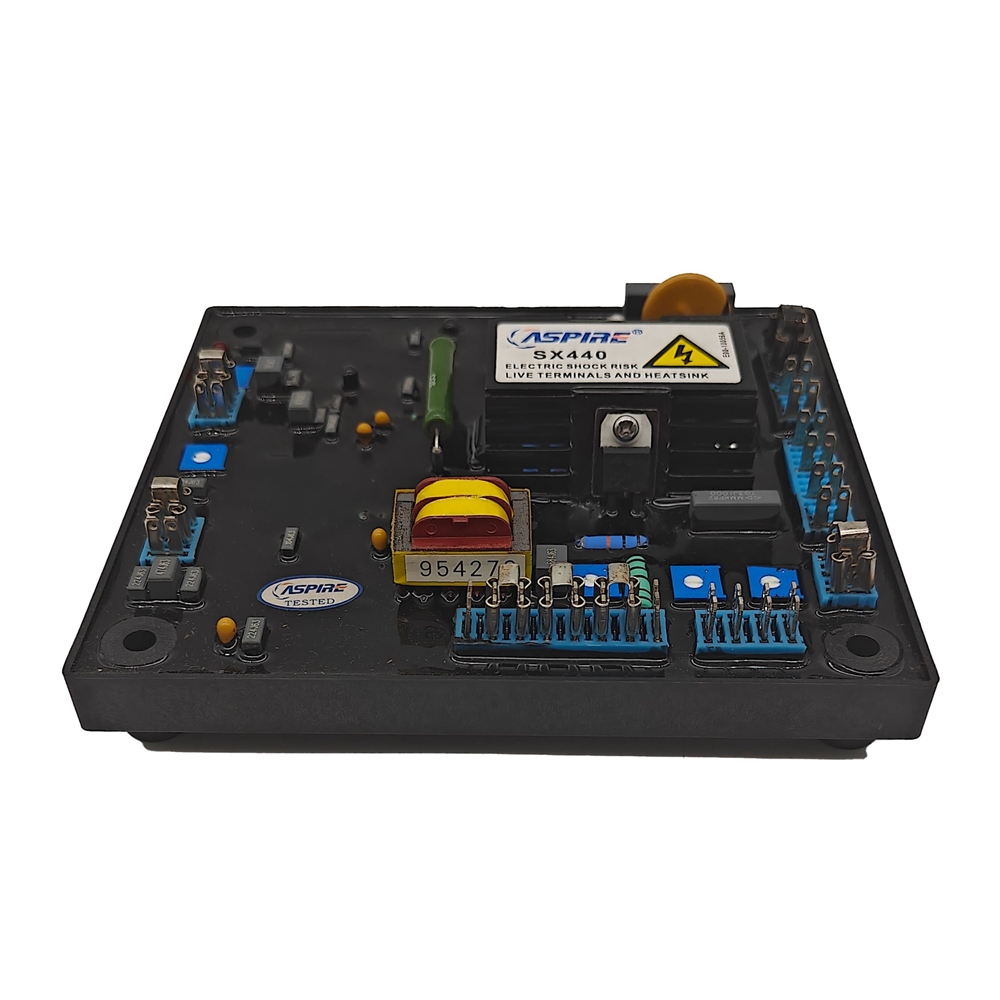

SX440 brushless generator excitation regulator automatic voltage regulator AVR regulator

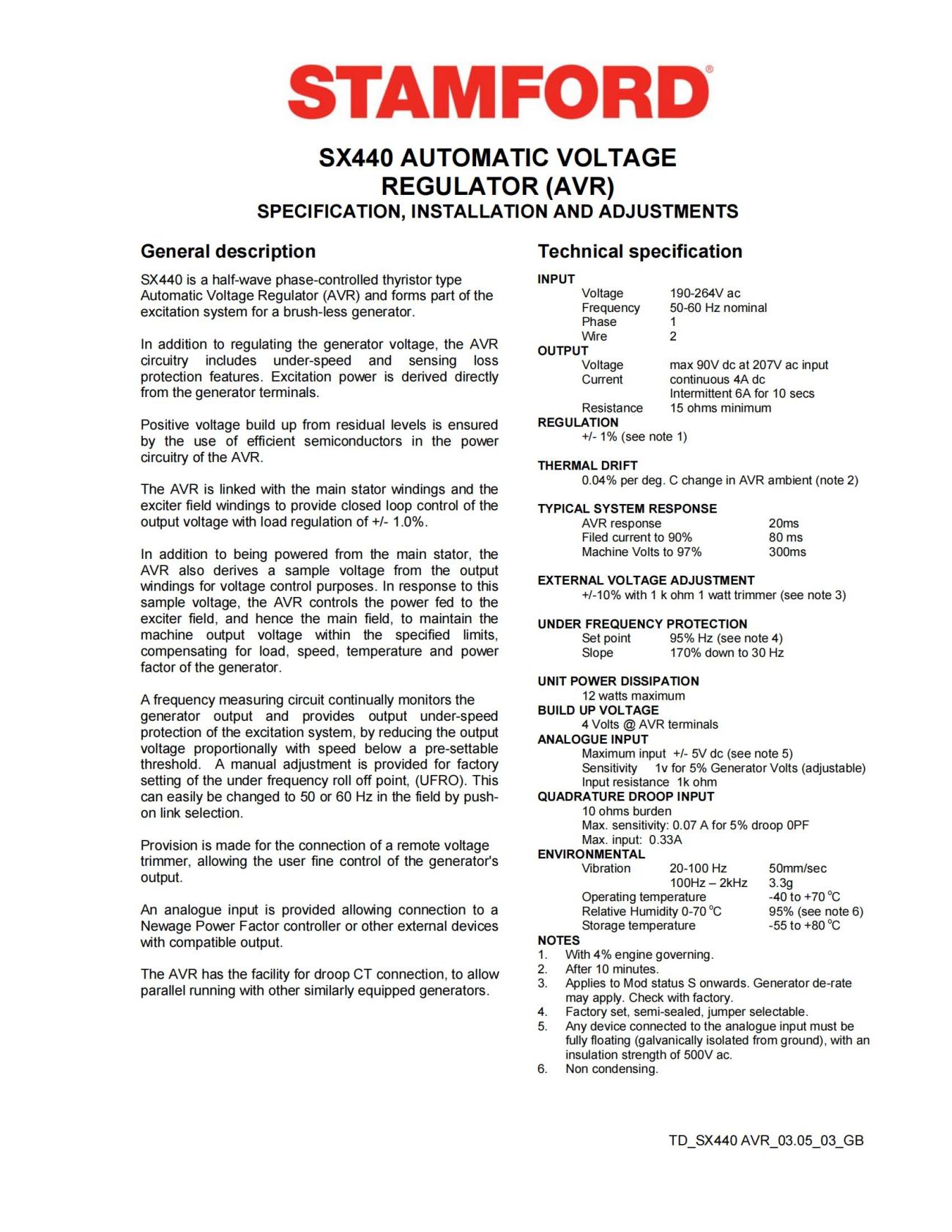

Specifications
Detection and power input: voltage 95-132VAC or 190-264 VAC, single-phase set with copper jumper, frequency 50/60Hz set with copper jumper
Output: Voltage 207VAC, maximum 90VDC at input, current continuous 4A, non continuous 6A for 10 seconds, minimum resistance 15Ohm
External voltage regulation:+7% when using a 1KO ohms 1Watt potentiometer
Slow voltage establishment time: 2 seconds
Voltage regulation rate:<+1.5% (engine speed variation within 4%)
Voltage establishment: A residual voltage of 5VAC or above is required at the AVR input terminal
Temperature difference stability: varies per ° C, with a voltage drift of 0.05%_
Power consumption: maximum 10Watt
Low frequency protection: The inflection point value is 95% Hz, and when the slope drops to 30Hz, it is 170%
Packaging size: 175 * 147 * 50mm
Packaging weight: 495g
Material: ABS PCB
Color: Black

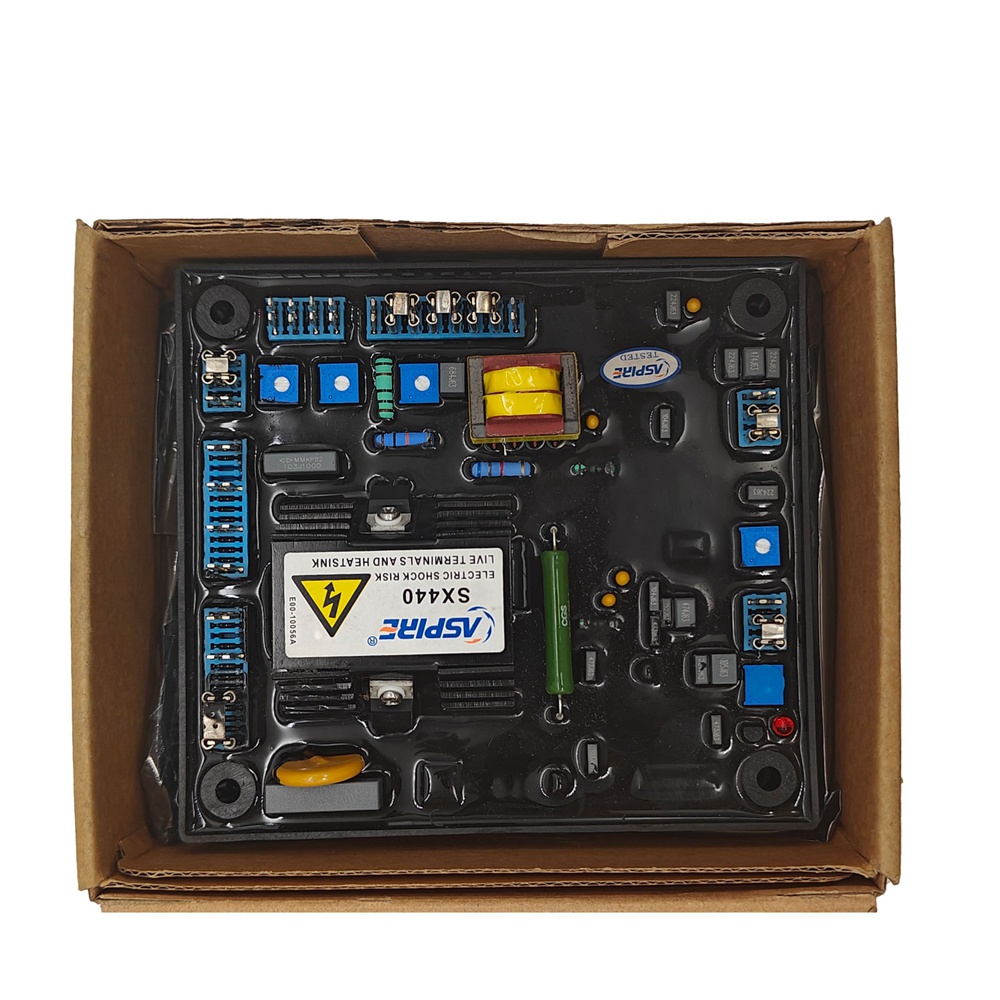

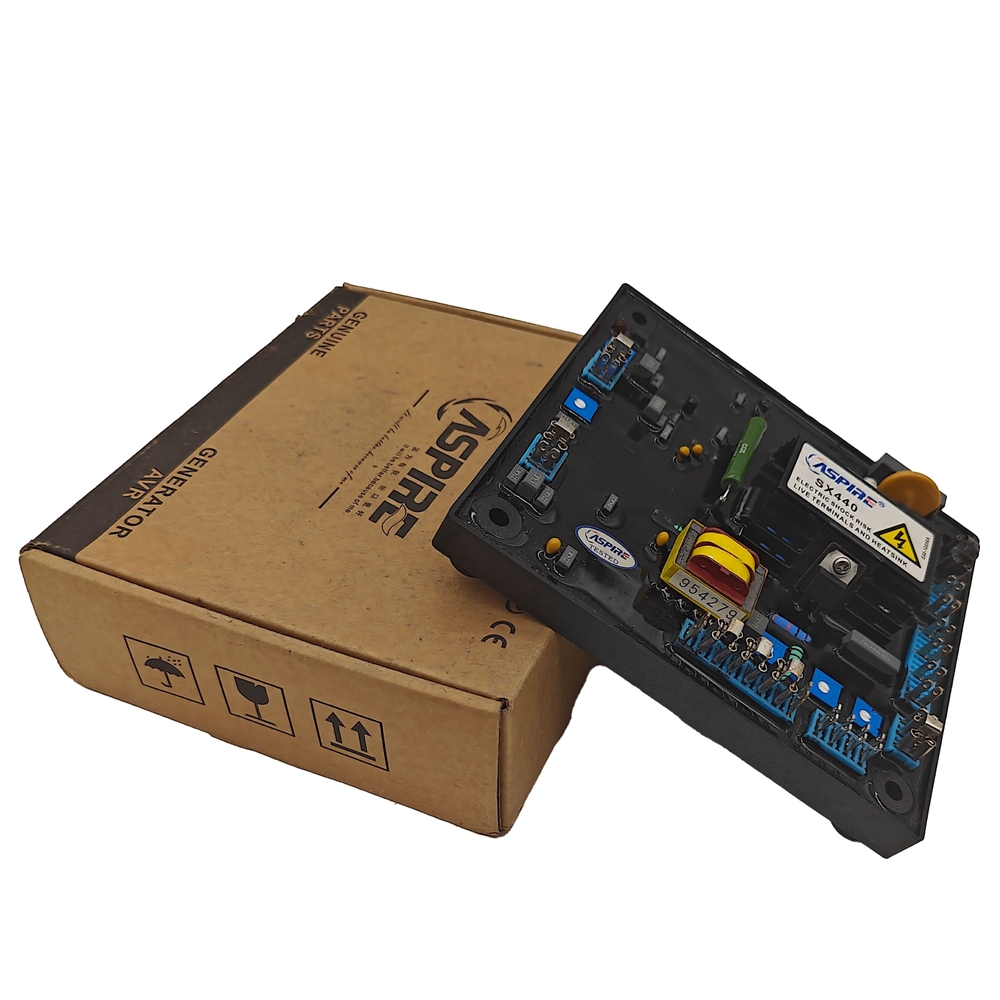

Packaging content: One SX440 AVR and one user manual
