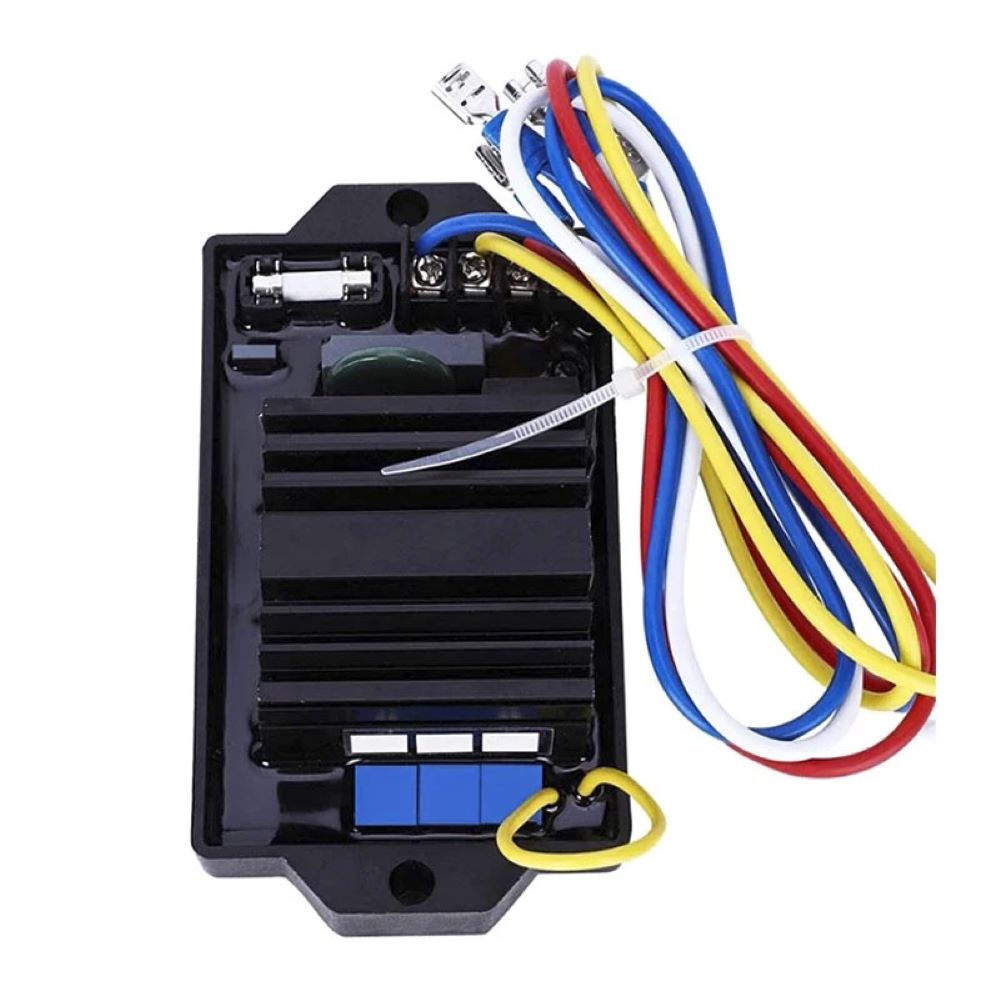

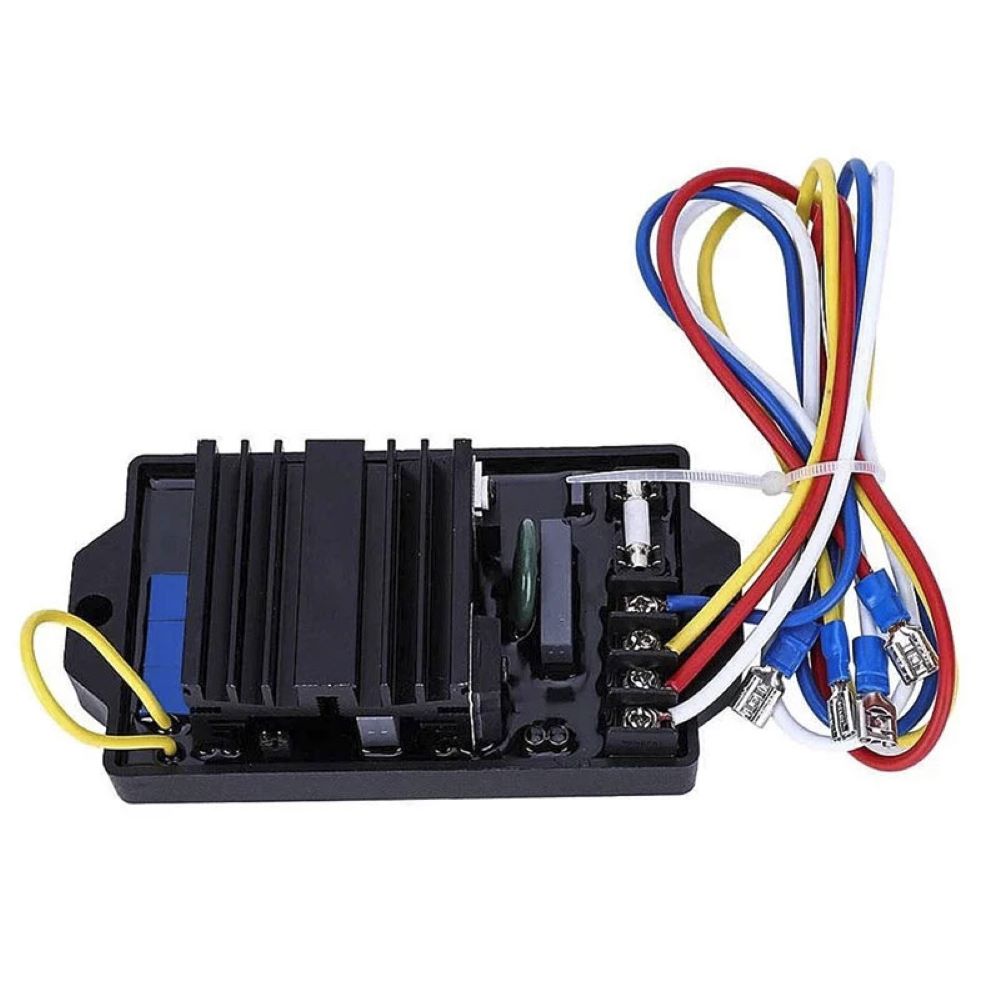

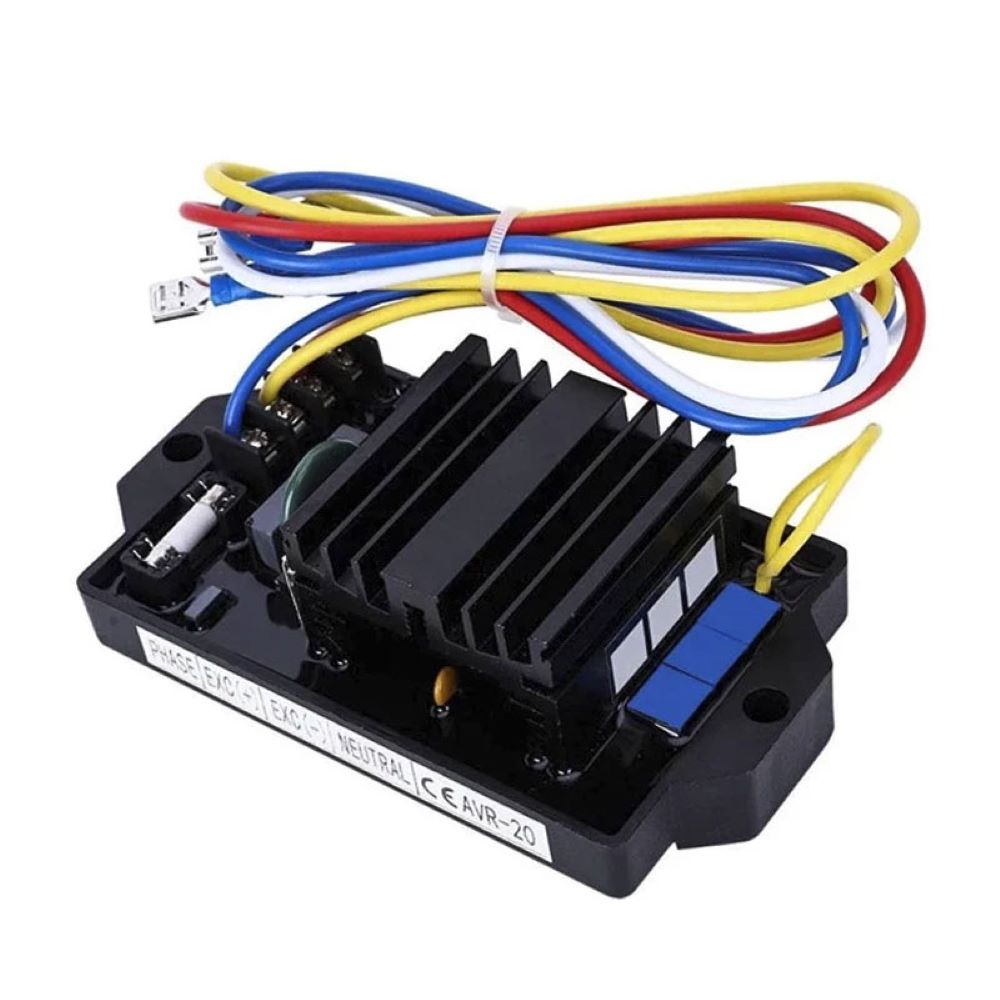

AVR-20 automatic voltage regulator brushless excitation generator stabilizer control module 20 Å 0-115V
standard
Number of phases: single-phase
Voltage regulation range: 210-250 volts minimum value
Frequency: 50/60Hz
Frequency protection adjustment range: 40-50Hz
Output voltage: 0-115 volts DC at 230 volts
Output current: 20A continuous
Residual voltage: minimum 5 volts
Adjustment:+/-2% thyristor
Power output level: Half wave Typhoon King
Internal fuse: 10A (quick fuse)
Working temperature: -10 "C (14F) to 60" C (140 "F)
Storage temperature: -20 "C (-4F) to 80" C (176 "F)
Maximum humidity: 95% non condensing
Fixed center: 115mm, 2xM6
Packaging size: 130 * 70 * 50mm
Packaging weight: 500g
Material: Metal
Color: Black
Packaging content: One AVR-20
