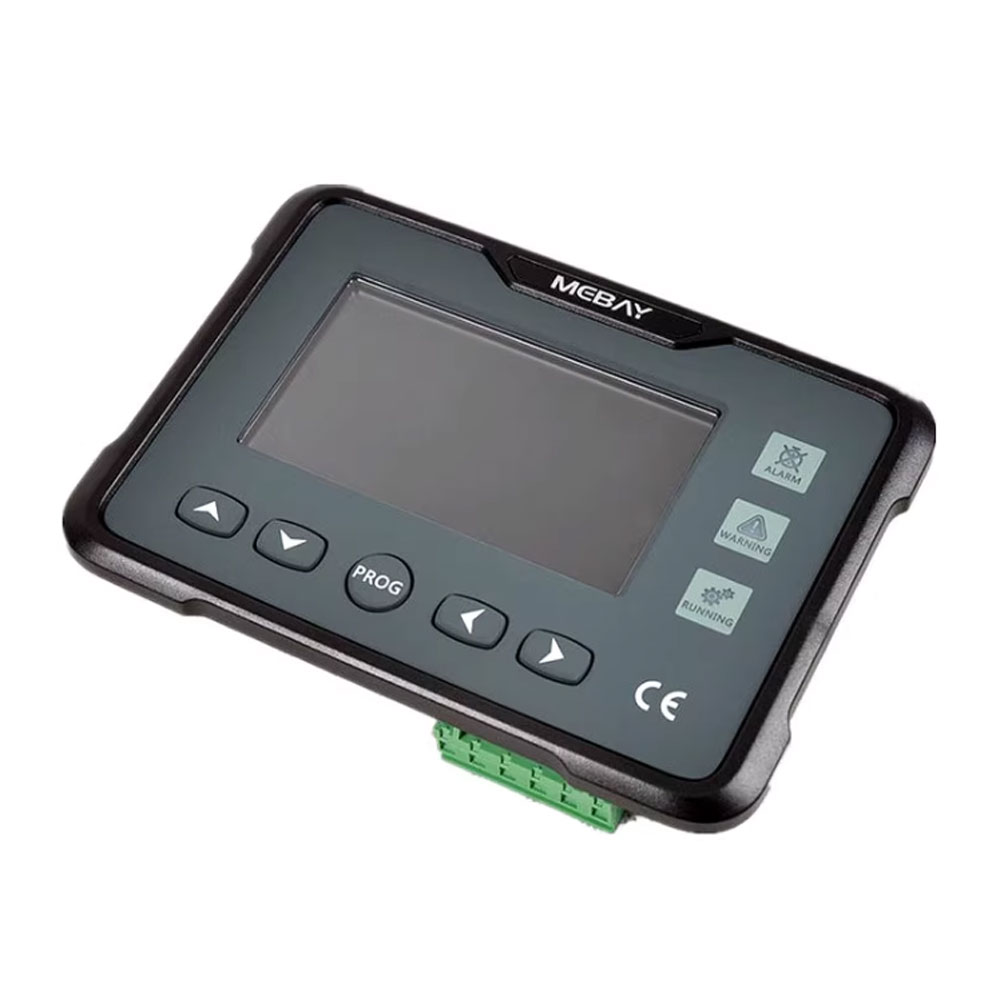

MEBAY Diesel Gas Engine GM70C ECU Parameter Panel Instrument Motor Set Engine Parameter Monitor
GM70C engine CAN instrument:
4.3 inch color screen+CAN+RS485+USB+speed regulation
This instrument is designed specifically for diesel and gas power parameter monitoring and fault monitoring. Equipped with CAN communication port and built-in J1939 protocol. The relevant parameters can be read through the CAN interface of the engine ECU.
main features
GM70C has a CAN port, built-in J1939 protocol, alarm protection function and USB communication port, RS485 communication port, compatibility with MODBUS communication protocol, and measurement of related parameters of air compressors, dedicated to diesel driven air compressors.
Dual core 32-bit high-performance microcontroller.
4.3-inch TFT color large screen LCD, available in 3 languages, user language settings if necessary.
Display indicators and numbers through the UI interface.
Acrylic materials are suitable for protecting screens.
Silicone panel; USB port: Even without power, parameters can be set through the USD port for real-time monitoring.
Equipped with RS485 communication port, it can achieve the "three remote" function through MODBUS protocol.
Standard CAN communication port with built-in J1939 protocol.

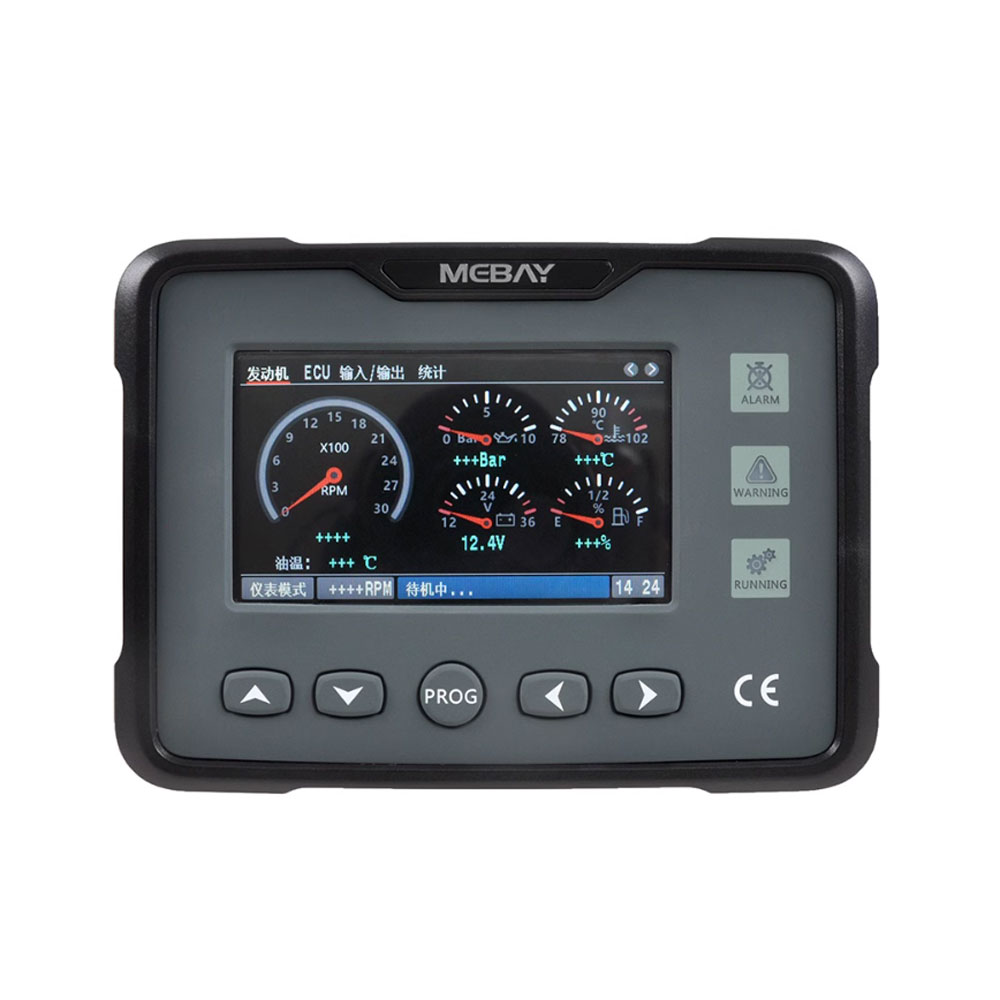

Various parameter displays.

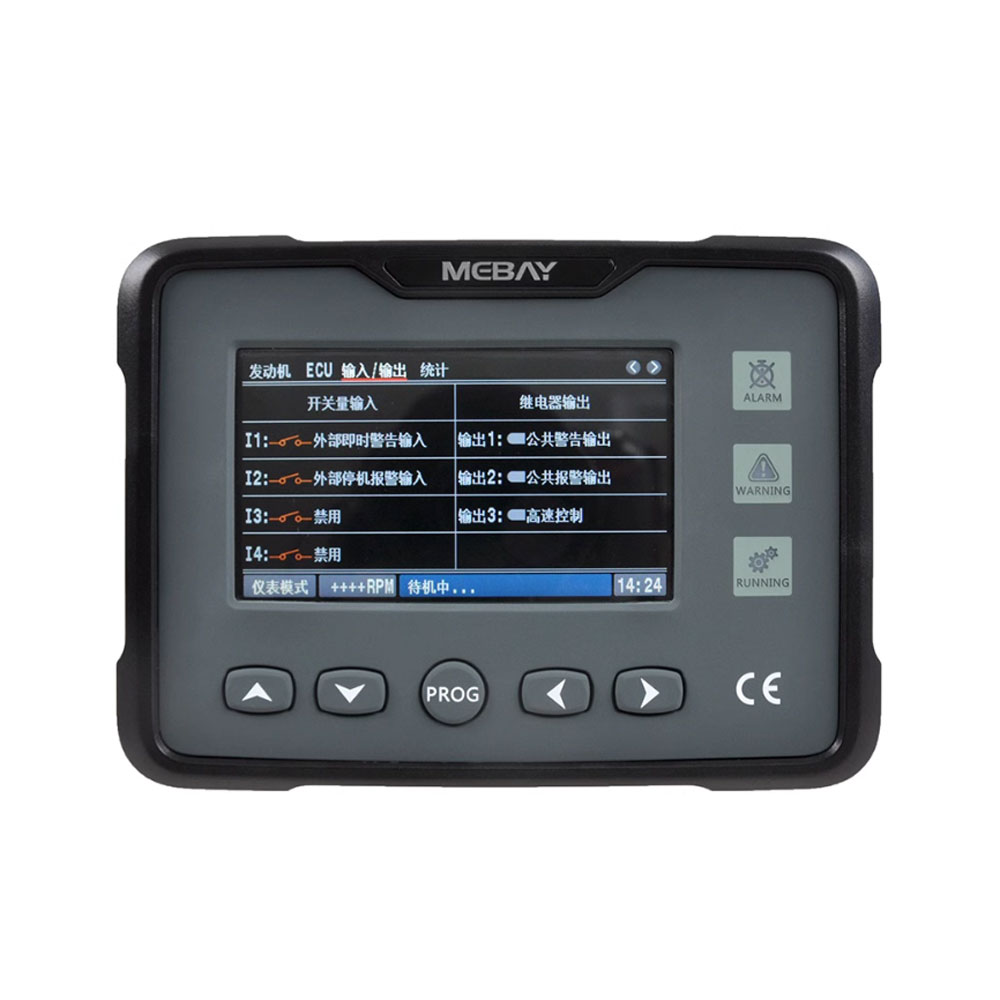

Input/output function, which can directly display the status.
More categories of surface settings.
Protect the countdown function;
Internal real-time clock; Maintenance time or date can be set.
The black box function can save the relevant parameters of the unit in real time when a fault alarm occurs, making it convenient to find the cause of the fault.
There are a total of 3 relay outputs, among which 3 relay outputs can be configured independently, and each relay can be set with multiple functions. In addition, there are 2 groups as non-contact terminals.
With 4 switch inputs, multiple functions can be set.
1 sensor analog input connector.
Sensors can be defined by the front button or PC software.
Standard waterproof rubber gasket. The waterproof level can reach IP54.

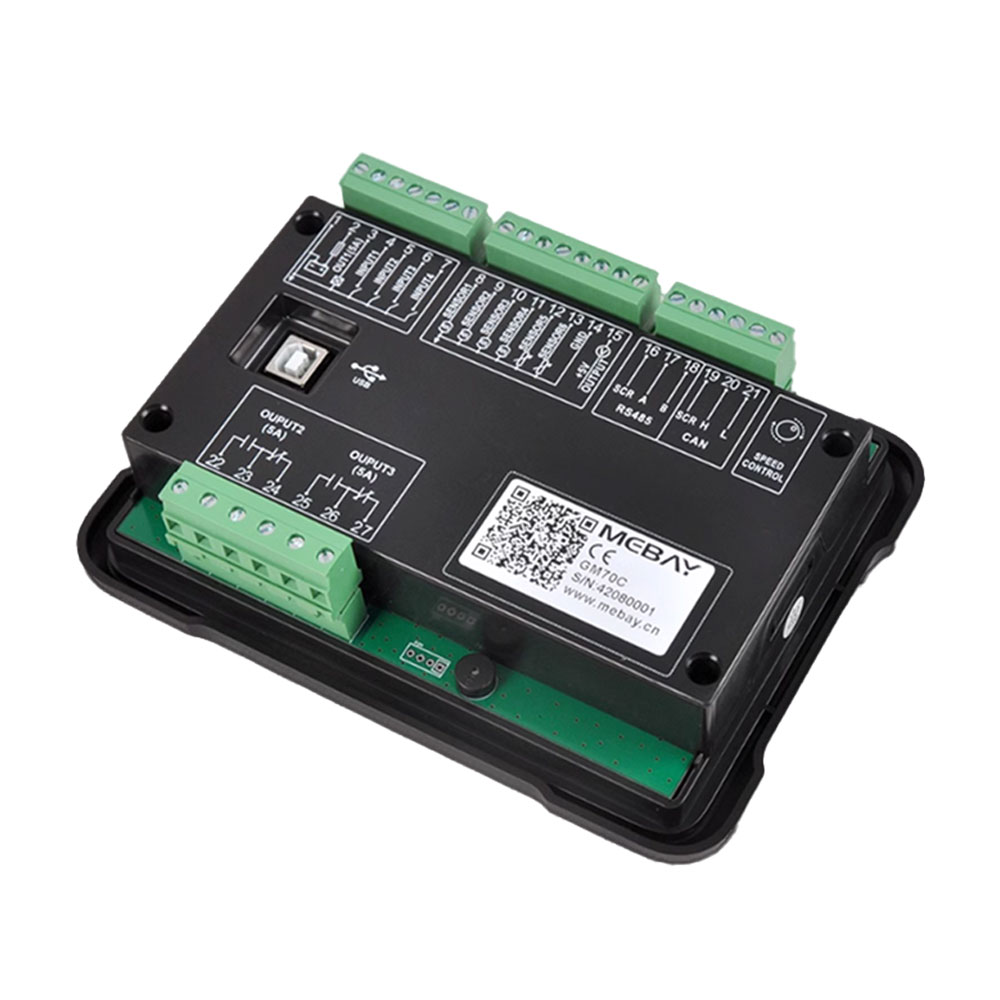

Module design: All connections are made using European connectors, making installation, connection, maintenance, and replacement more convenient.
Limited time use function.
